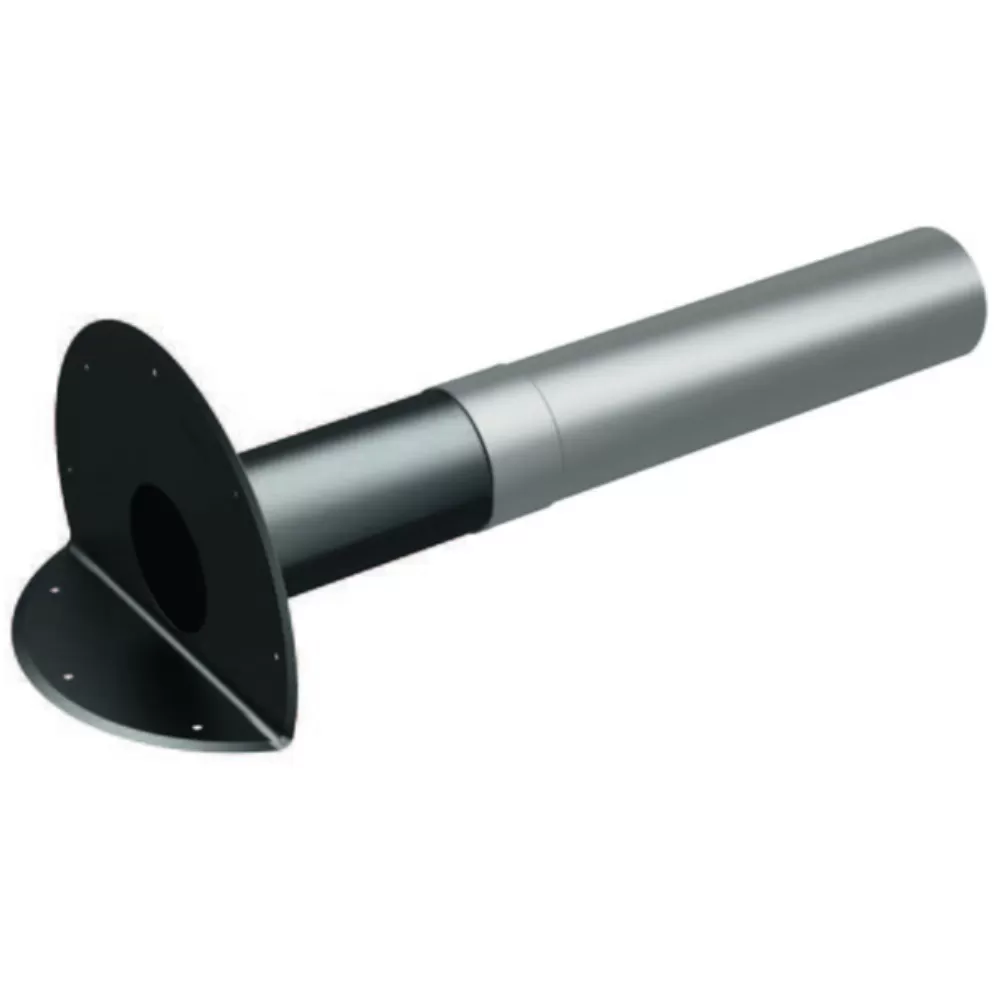

Flavent Rainwater Parapet Outlet

Product Code: KF6530-1 KF6540-1

Horizontal outlet can be joined to parapet walls, terraces and balconies.

  • Ideal for installation to flat roofs, balconies and terraces
  • Weather, frost and UV-resistant
  • Extendable, reliable and easy to install
  • Klober Parapet Rainwater Outlet 70mm

    More Information

    Parapet rainwater outlets are designed for optimum drainage of parapet walls, terraces and balconies. The parapet outlets have a PVC flange for use with PVC membranes and liquid plastics.

    Specifications

    Technical Data
    Colour
    Black
    Material
    PVC
    Fire Rating
    E
    Dimensions and Weights
    Length
    711mm
    Height
    185mm
    Diameter
    70mm
    Packaging
    Number of Pieces per Carton/Pack
    5
    Number of Carton/Pack on Pallet
    8
    Number of Pieces per Pallet
    40
    Weight per Piece
    0.7 kg
    Technical Data
    Colour
    Black
    Material
    PVC
    Fire Rating
    E
    Dimensions and Weights
    Length
    738mm
    Height
    230mm
    Diameter
    100mm
    Packaging
    Number of Pieces per Carton/Pack
    5
    Number of Carton/Pack on Pallet
    8
    Number of Pieces per Pallet
    40
    Weight per Piece
    1.2 kg

    Installation

    • Specify sufficient fall/s to meet BS6229. Rainwater outlets should always be freely accessible for maintenance
    • It is recommended that roofs with interior drainage must have at least one emergency overflow or several exterior downpipes
    • Position rainwater outlets at the lowest point of a roof. The position and number of outlet pipes should be calculated using current regulations and best practice to ensure that surface water can drain away effectively. Maintain sufficient distance from rising building componentsand joints.
    • Rainwater outlets and emergency overflows should be fixed to the substructure of the roof. If the roof surfaces are divided into sections (e.g. fire compartments) then these areas must also be drained individually
    • Rainwater outlet flanges should be compatible with the roof membrane to ensure a watertight seal is made. Flanges should be below the roof membranes finished level to ensure that water does not puddle around the outlet. A two-piece outlet must be used to connect to the vapourbarrier in a ventilated roof

    Area of application

    • Suitable for ventilated roofs, balconies and terraces

    Standards and Certifications

    10 Year Guarantee
    10 Year Guarantee
